Hydraulic Assist Bench Grinder, 120V
$769.99
In stock
{{ selectValue }}
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping

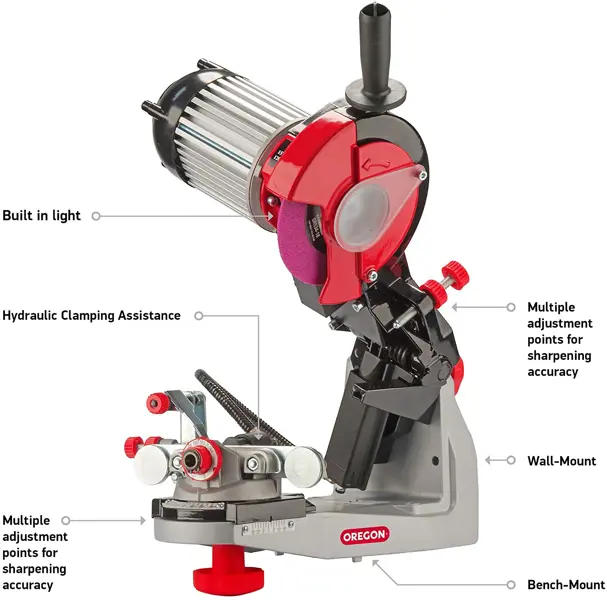

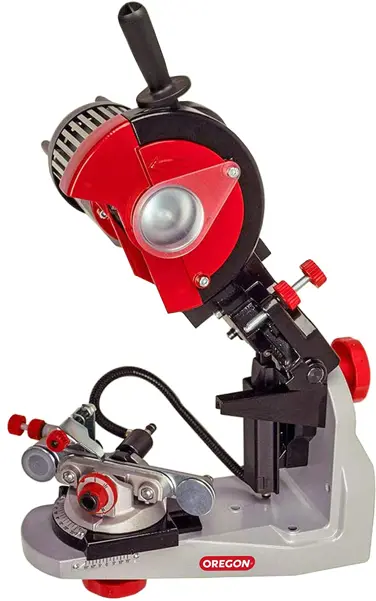

Providing the convenience and quality you need from a workhorse, the 620-series high-volume saw chain grinder features a hydraulic assist clamping vise, eliminating the need to manually tighten and loosen the vise.

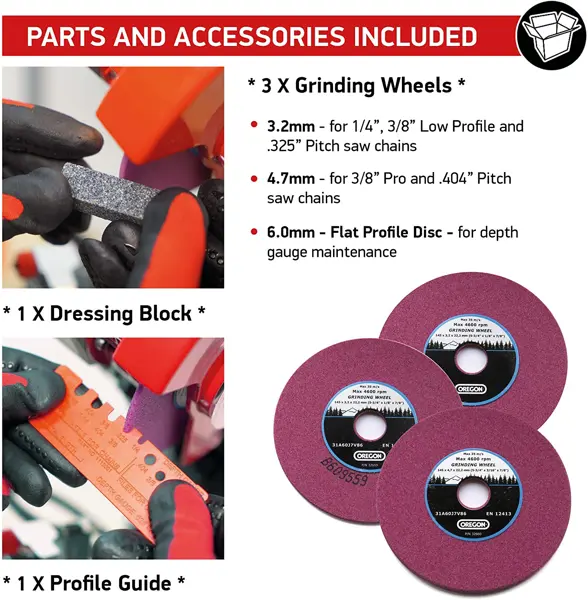

- Includes: Grinder, a dressing brick and profile guide, operator instructions plus two grinding wheels (3.2mm & 4.7mm) and a 6.0mm flat profile disc for depth gauge maintenance
- Delivers precision and accuracy on all chain pitches.

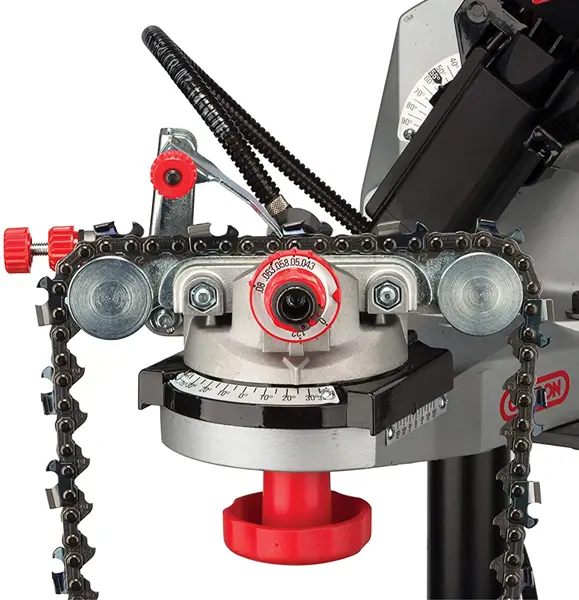

- Hydraulic assist for hands-free automatic vise clamping
- Wide clamping area abd clear markings for easy adustments.
- All chain type vise capacity. Grinds all chains up to 3/4" out of the box.
- Includes three grinding wheels ( OR534-18, OR534-316, OR534-516) for sharpening 1/4", 3/8" Low Profile, .325", .325, 3/8", .404" and 3/4" pitch chain, a DB-2 dressing brick and a 35596 quick template.
- Single phase, direct-drive, one-way, 120V, 60Hz, 4.3A, 300W, 3400 RPM, 0.4 HP motor.
- 21 lbs. weight and 19-1/2" height.
| PRODUCT TYPE | GRINDER |
|---|---|
| VOLTAGE (V) | 120V-AC |
| WHEEL SIZE | 5 3/4'' |
| MAXIMUM PITCH SIZE | 3/4'' |
| SPECIAL FEATURE | BUILT-IN LIGHT |
OWNER'S MANUAL
620 120
620 120.pdf
