PCA-1276
PCA-1276

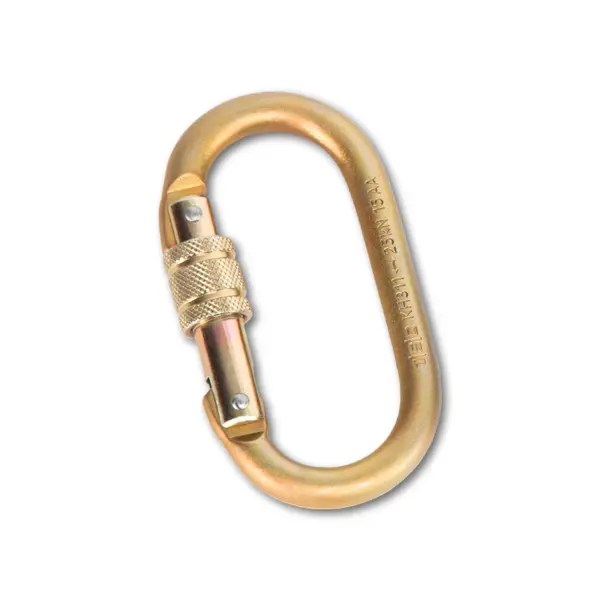

Steel Locking Carabiner - Mbs: 25 KN
$15.00
In stock
{{ selectValue }}
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping
Multi-purpose carabiners with screw-gate lock. Useful for attaching:
- A pulley to a tree or to a load;
- A polyester sling to a vehicle or two slings together;
- A hook to a rope;
- All other applications according to your needs.
SPECIFICATIONS

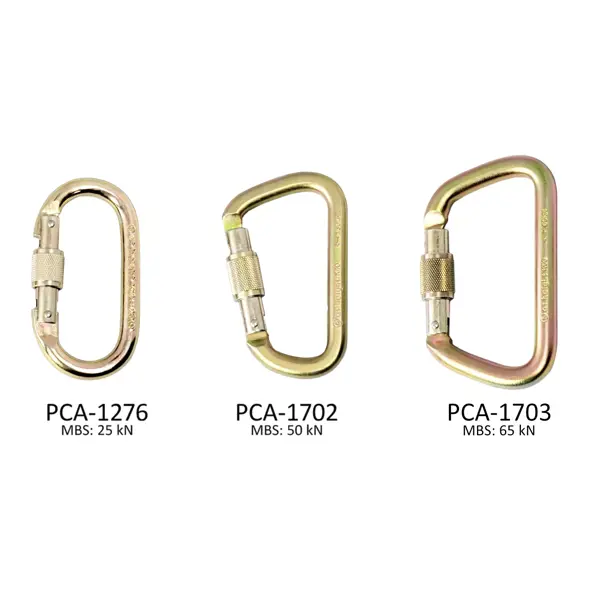

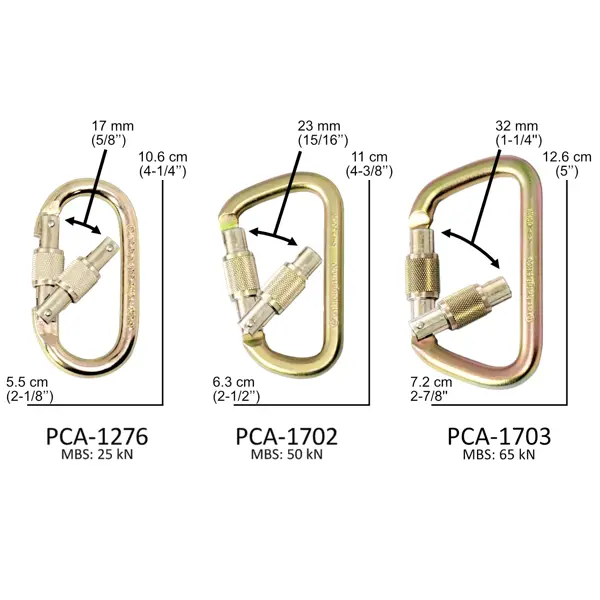

| MBS | DIAMETER | LENGTH | WIDTH | OPENING | WEIGHT | MATERIAL | CERTIFICATION | |
| PCA-1276 | 25 kN (2,550 kg) | 10 mm | 107 mm | 58 mm | 17 mm | 200 g | Zinc plated steel and high-quality anodized aluminium | CE |
| PCA-1702 | 50 kN (5,100 kg) | 12 mm | 115 mm | 69 mm | 20,5 mm | 250 g | ||
| PCA-1701 | 70 kN (7,140 kg) | 12,5 mm | 125 mm | 73 mm | 29 mm | 300 g |
Portable Winch carabiners have different minimum breaking strengths, which are observed during a destructive test. When the force exerted is multiplied through a block and tackle system, the carabiners located on each end are subject to significant forces. A sufficient safety factor must then be taken into account so that the equipment operates safely.
Refer to the table to find out the safety factor obtained with each of the carabiners based on the load to move.
| PRODUCT TYPE | CARABINER |
|---|
