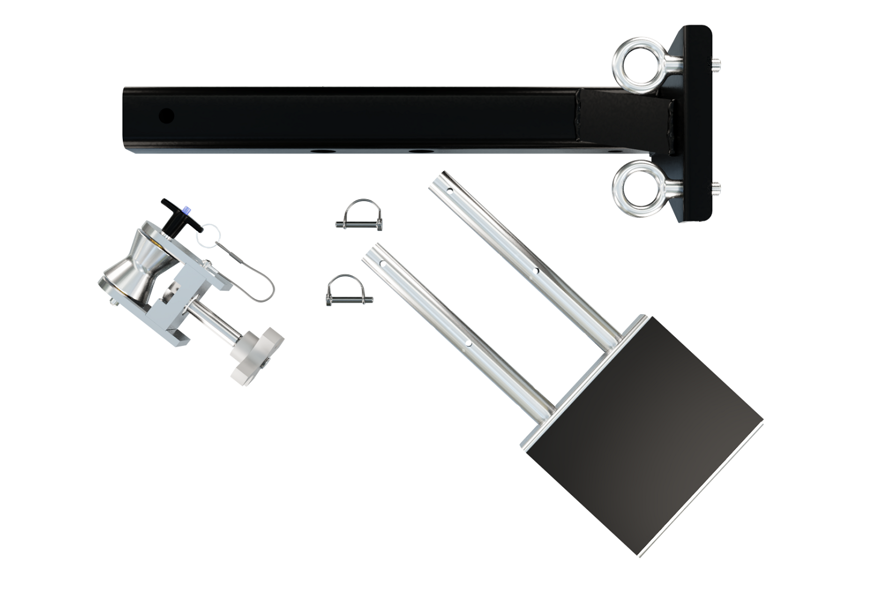

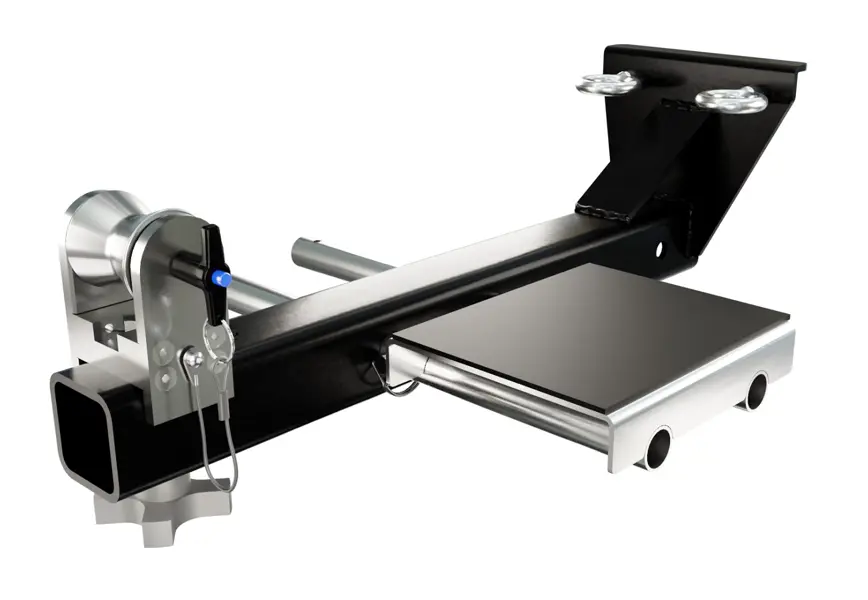

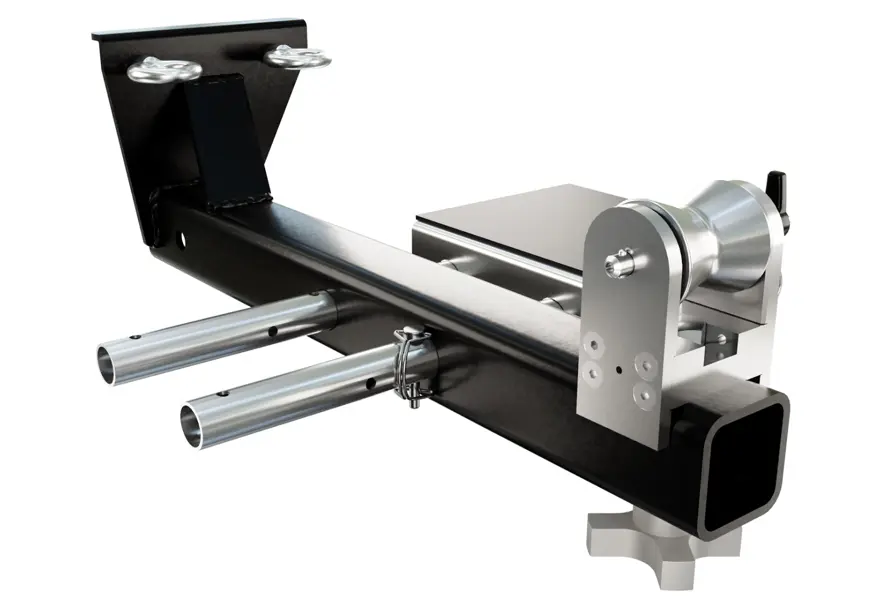

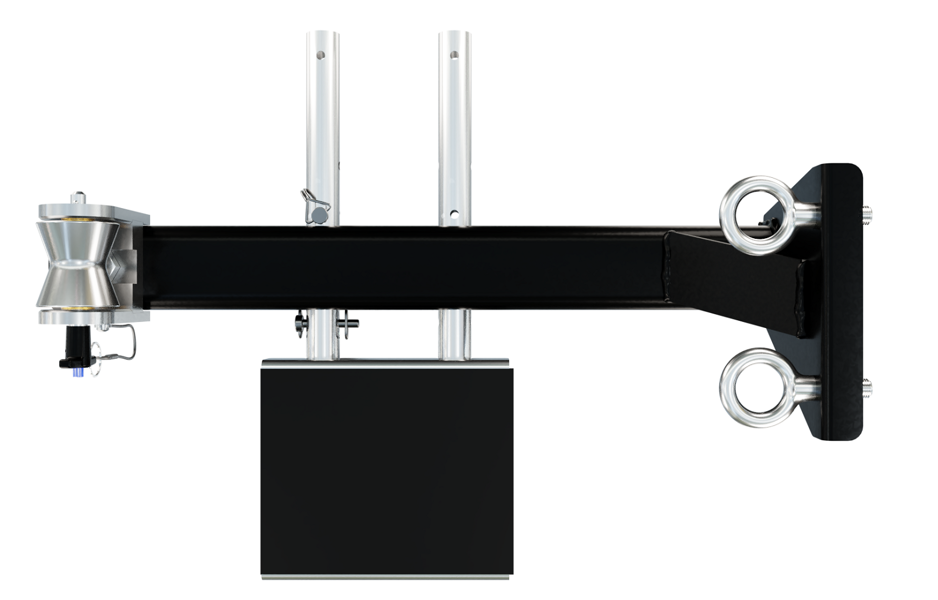

This winch support is designed for vertical pulling with our winches PCW3000-Li, PCW3000, PCW5000, PCW5000-HS.

It is equipped with an adjustable shelf and offers a solid and stable support allowing the winch to be properly seated.

It also has a removable "V" shaped pulley mounted on ball bearings, providing optimum rotation. This pulley redirects the rope vertically at an angle to reach sections of towers or pylons far from the center.

To install the rope, simply remove the "T" handle and pulley, thread the rope, then put the handle and pulley back in place.

Although it was originally designed for lifting, note that it can also be used for pulling when combined with the pivoting anchor PCA-1332. This accessory therefore makes the PCA-1264 very versatile. Note that when used for horizontal pulling; the "V" pulley is not used.

SPECIFICATIONS

Note: The PCA-1264 cannot be used alone; it must be combined with other accessories to be used. Different combinations are therefore possible depending on the type of operation and the environment. Refer to the figures to discover all the possibilities.

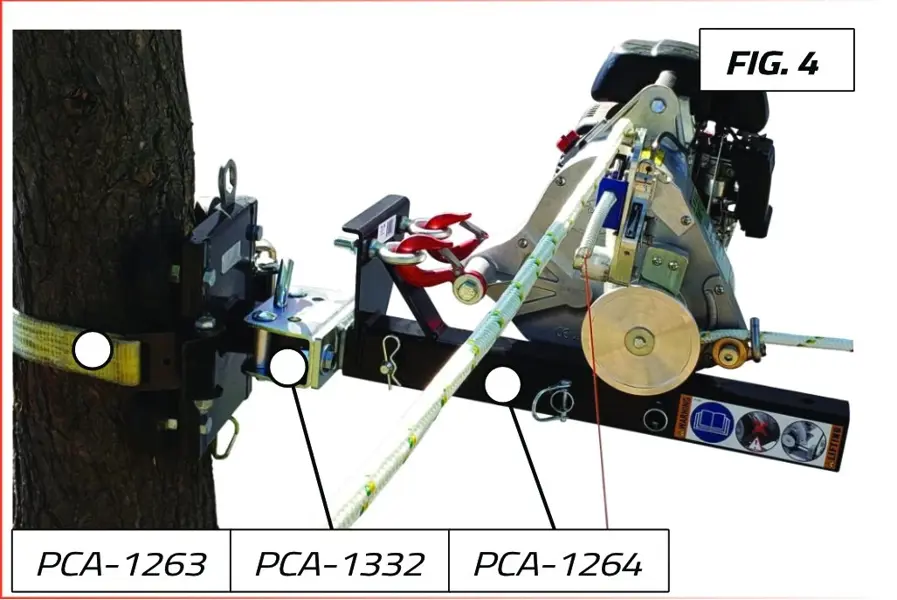

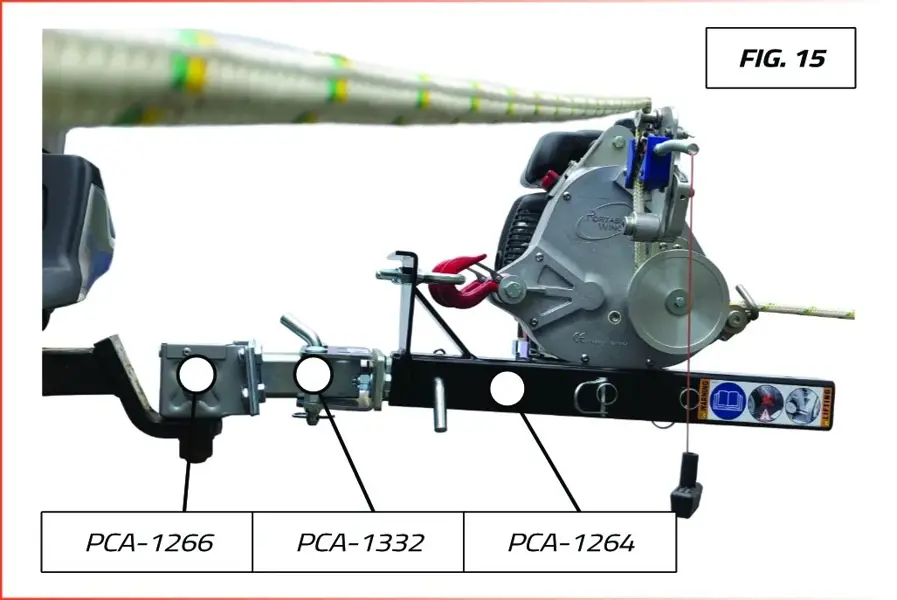

For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.

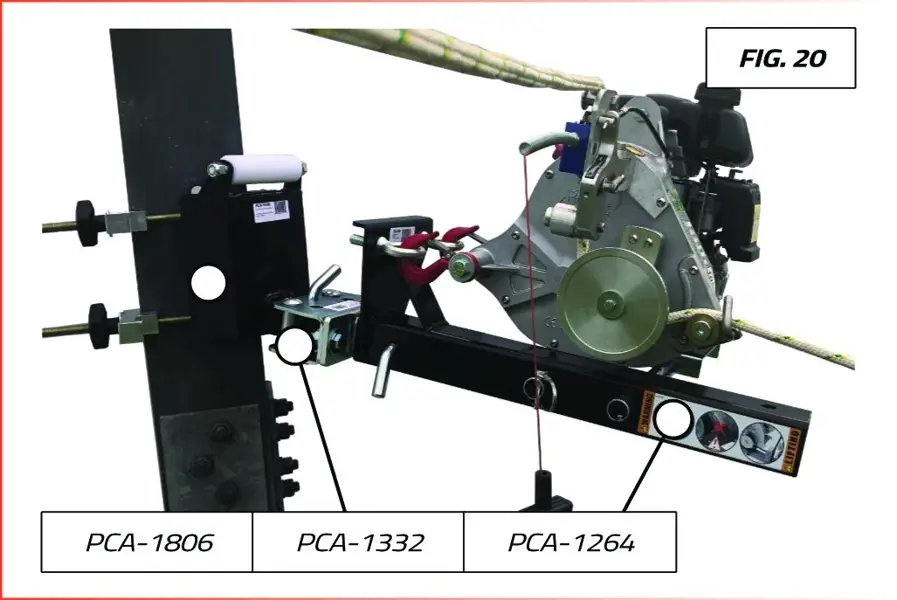

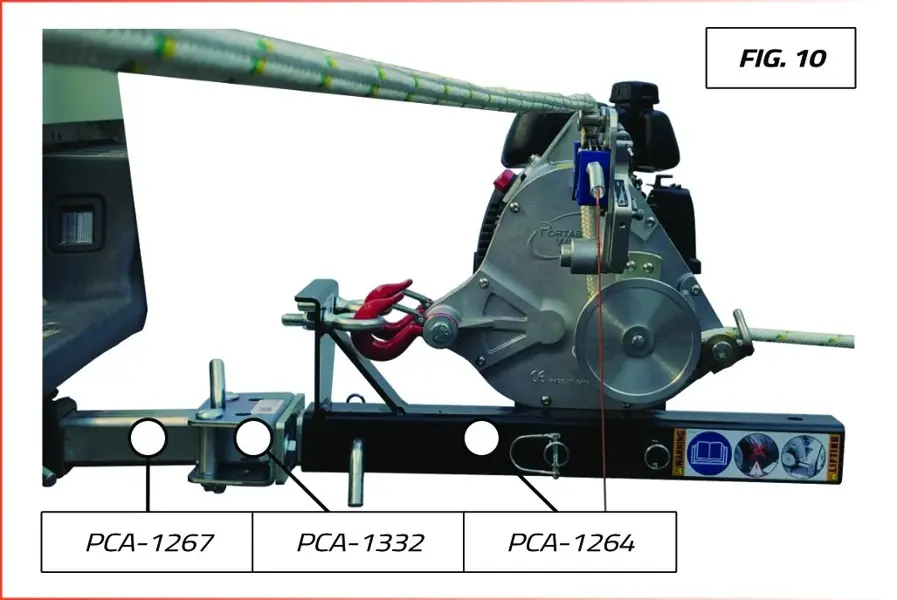

See Fig. 4, 10, 15, 20

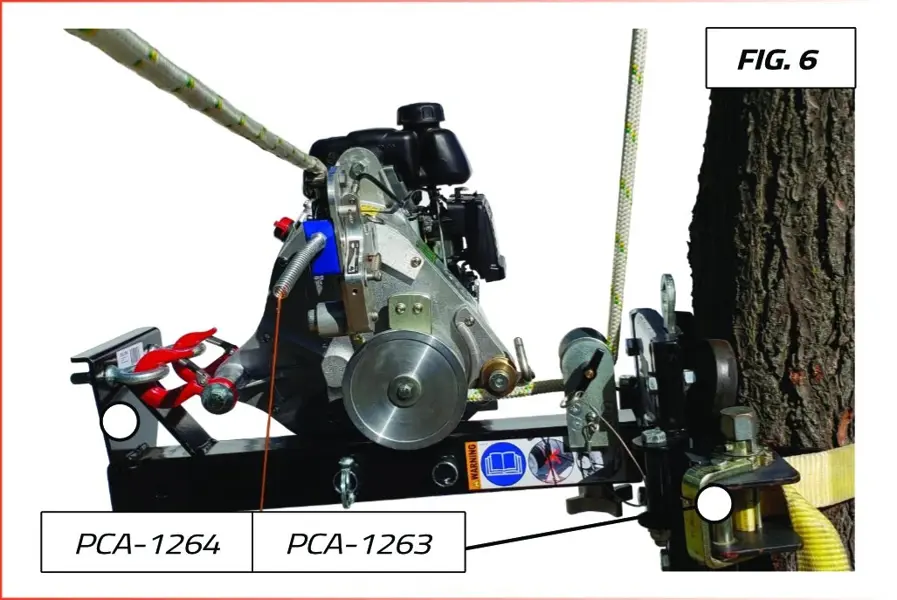

Whereas when combined with other accessories it will be used for vertical pulling. In these cases, the winch will face the anchor point and the rope will come from the top to the winch.

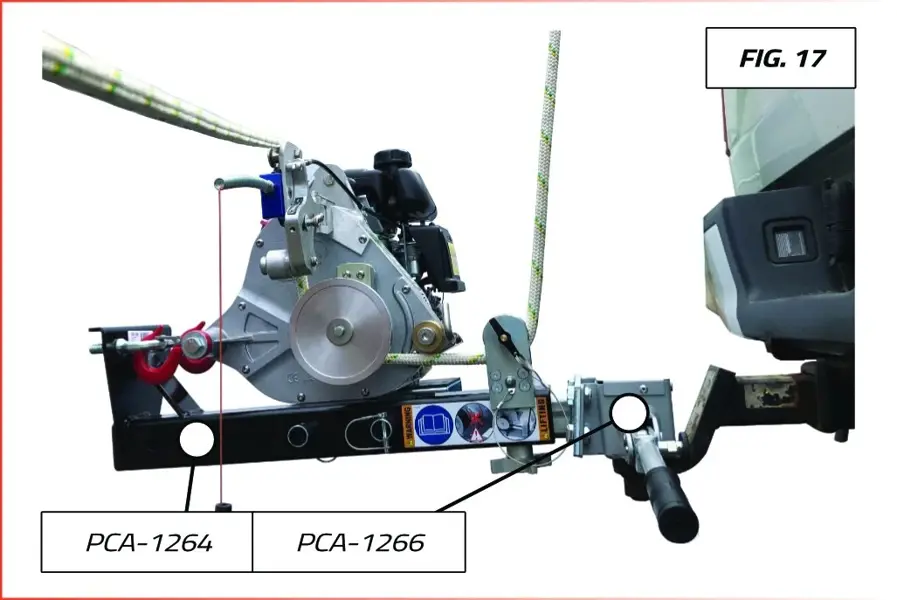

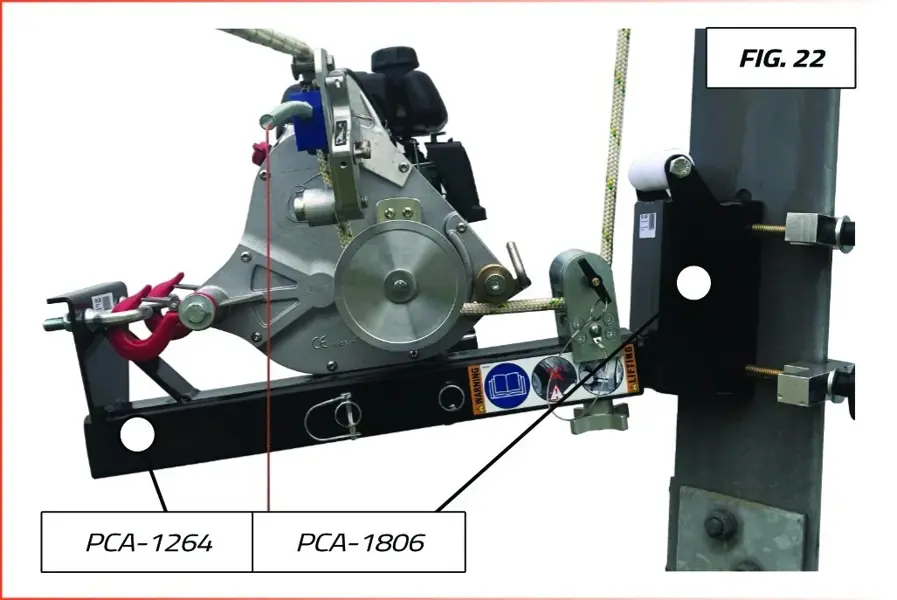

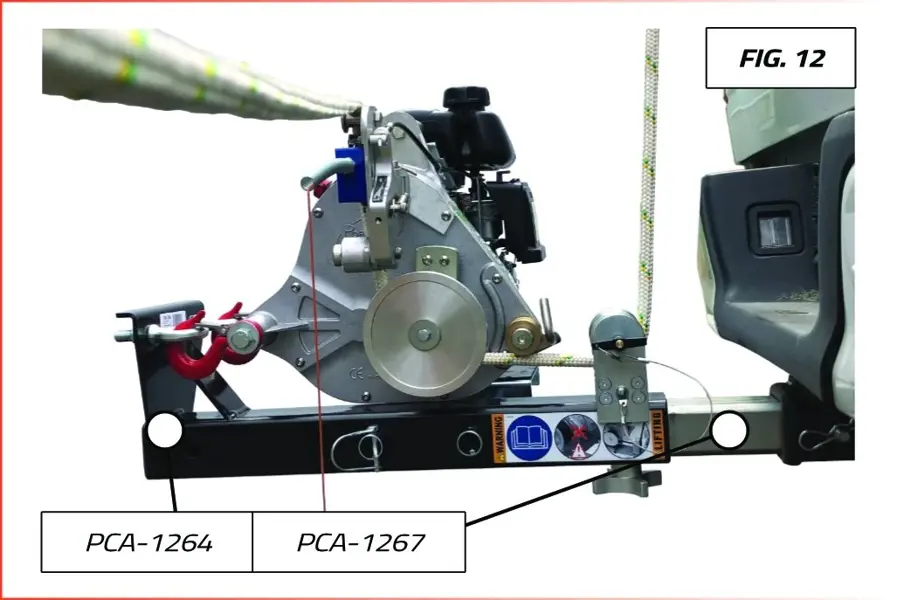

See Fig. 6, 12, 17, 22

Material: Steel with high resistance paint
Weight: 10.6 kg
Dimensions: Lg 579 mm x L 429 mm x H 219 mm
