520-120
520-120
Bench Grinder, Premium 120V
$664.99
Only 8 in stock
{{ selectValue }}
Free in-store pickup
- Experts Advice
- On-site service and warranty
Parcel shipping

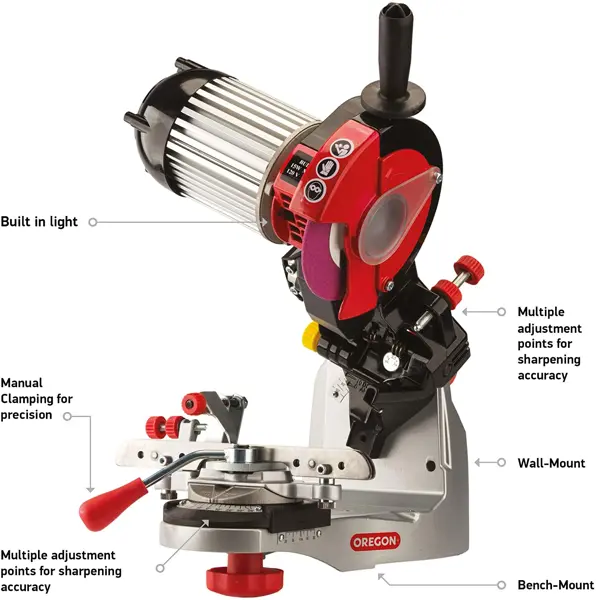

520-series saw chain grinder combines premium quality and ease of use for high volume sharpening, featuring a sharp design and an newly engineered vise for improved performance.

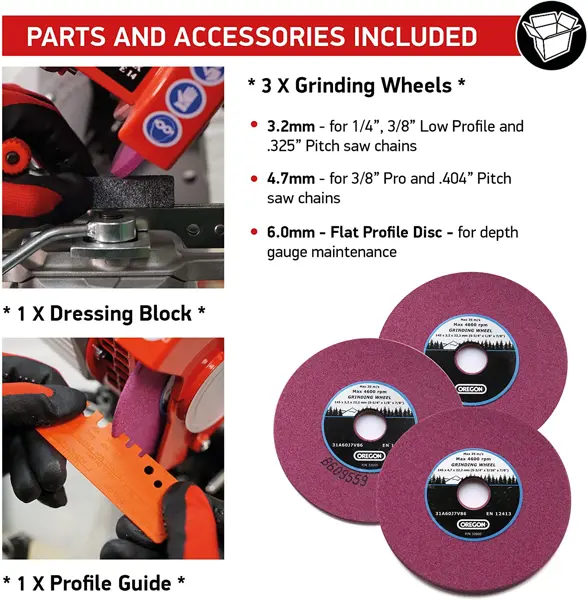

- Includes: Grinder, a dressing brick and profile guide, operator instructions plus two grinding wheels (3.2mm & 4.7mm) and a 6.0mm flat profile disc for depth gauge maintenance
- Grinding wheel wear adjustment
- Indexing chain stop assembly
- Motor-head release button.

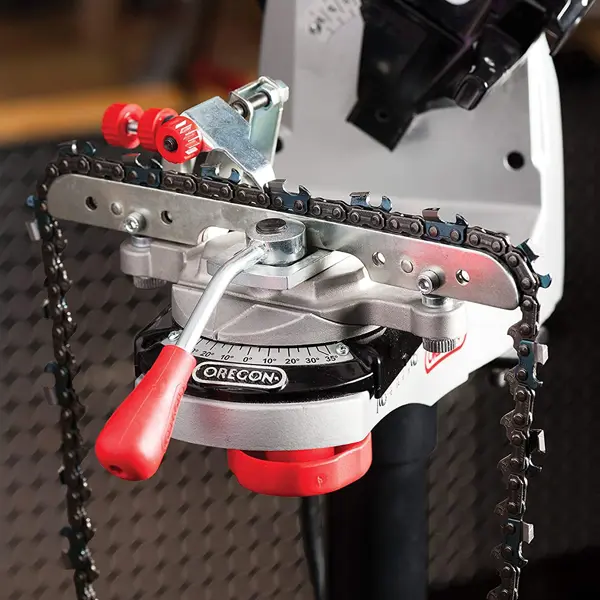

- Longer, self-centering, forward/aft sliding vise.
- Built-in light and one-way motor rotation for safe operation.
- Grinds all chains up to .404" pitch out of the box. Vise assembly for 3/4" pitch available separately.
- Includes three grinding wheels (OR534-18, OR534-316, OR534-14) for sharpening 1/4", 3/8" Low Profile, .325", .325, 3/8", .404" , 3/4" pitch chain and depth gauge grinding, a DB-2 dressing brick and a 35596 quick template.
- Single phase, direct-drive, one-way, 120V, 60Hz, 4.3A, 300W, 3400 RPM, 0.4 HP motor.
- 20 lbs. weight and 19-1/2" height.
| PRODUCT TYPE | GRINDER |
|---|---|
| VOLTAGE (V) | 102V-AC |
| WHEEL SIZE | 5 3/4'' |
| MAXIMUM PITCH SIZE | .404'' |
| SPECIAL FEATURE | BUILT-IN LIGHT |
OWNER'S MANUAL
520 120
520 120.pdf
